. INDEX
1. Flush-mounted panel with square hinges - Ligne Classique
2. Flush-mounted panel - Prameta hinge
3. Adjustable surface-mounted opening panel - 3 mm frame surface coverage Prameta hinge
4. Flush-mounted opening panel without notch -regular hinge with patented pressuref Adler
5. Flush-mounted opening panel without notch - double door with single locking - Adler
6. Flush-mounted door - horizontal and rectangular hinge - Adler Selection
7. Surface-mounted panel - Rectangular hinge / 7.5 mm surface covering - Adler Selection
8. Surface-mounted panel - Rectangular hinge / 15 mm surface covering - Adler Selection
9. Pivot hinge without notch with patented tightening screws - Adler
10. Pivot hinge without notch with patented tightening screws for wide doors - Adler
11. Pivot hinge for notched glass with timber plate - Prestige - Adler
12. Pivot hinges for notch glass with timber plate - Design rounded edges - Adler
13. Pivot hinges for notched glass with flushed pivot - Design rounded edges - Adler
14. Rounded edges and curved surface Venus hinge and bolt lock knob - Adler
15. Rounded edges and curved surface Venus hinge and electronic access contro - Adler Selectionl
16. Drop front hinge and gas cylinder compas with wooden frame - Ligne Classique

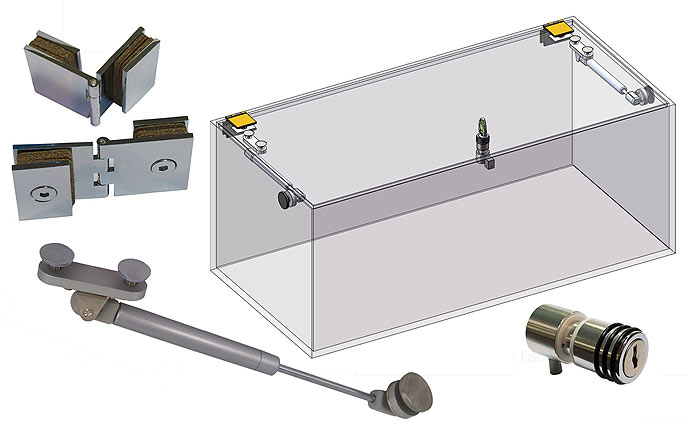

17. Drop front hinge and gas cylinder compas with glass frame - Ligne Classique
18. Components for showcase
19. Glass/glass fastener - family 637 - Adler
20. "Square Design" - Family 635 - Adler Selection
21. Came lock cylinders
22. Kaba security cylinders dia 18x28 - Adler
23. Full lenght custom made pivot hinge - Adler
24. Hinges for showcase MINIMA - Adler selection
25. Clamp for showcase MINIMA - Adler selection

.
1. Flush-mounted panel with square hinges -
Cork wedges and screws included
Component for showcase Chromed Mat chromed
Hinge for 6-8mm glass
Lock N°1 without key
Key
Lock with different key numbers

Components for showcase


2. Flush-mounted panel - Hinges
Counterplate hinge plastic wedges included

Chromed
Polished anodised
Nickel satin
Hinge for flush-mounted opening panel with 3D adjustment : ±1.5mm, deepness ±2mm, lateral 2mm
Lock n°1 without key

Key



Counterplate hinge plastic wedges included
Components for showcase
Chromed
Polished anodised
Nickel satin
Hinge for flush-mounted opening panel with 3D adjustment : ±1mm, side 1mm
Adaptation kit for mounting gl/gl hinges for 5-8 mm glass 639 23H/24J/27M/28N
Lock n°1 without key
Key
3. Adjustable surface-mounted opening panel- 3mm frame surface coverage hinges
Counterplate hinge plastic wedges included
Components for showcase
Chromed
Polished anodised
Nickel satin
Adjsutable hinge for surface-mounted opening panel : height ±1mm, side 1mm - for 5-8 mm glass
Lock n°1 without key
key
4. Flush-mounted opening panel without notch - Regular hinges with patented pressure tightening screws
Strike plate and 2 keys included
Components for showcase
Height mm
Chromed
Mat chromed
Hinge for 6-8mm glass
50
25
Lock n°1 without key
Lock with different key numbers
5. Flush-mounted opening panel without notch - double door with single locking for both doors - Rectangular brass hinges with patented pressure tightening screws

Strike plate and 2 keys included
Components for showcase
Height mm
Chromed
Mat chromed
Hinge for 6-8mm glass
50
25
Lock n°1 without notch for double door
-
6. Flush-mounted door - Horizontal and rectangular hinge

2 keys included
Components for showcase
Nickel satin
Hinge for 5mm glass
Lock n°1 without key
key
7. Surface-mounted panel - Rectangular hinge / 7.5mm surface coverage

Components for showcase Nickel satin
Hinge for 5mm glass
Lock with different key numbers
8. Surface-mounted panel - Rectangular hinge / 15mm surface coverage



Components for showcase
Nickel satin
Hinge for 5mm glass
key
Lock with different key numbers
9. Pivot hinge without notch with patented tightening screws
Components for showcase
Chromed
Mat chromed
Pivot hinge for 4-8mm glass
Lock n°1 without key
key
Lock with different key numbers

4
930 mm
5
830 mm
6
760 mm
8
650 mm
Maximum widness of the gate dependng on glass thickness
10. Pivot hinge without notch with patented tightening screws for wide doors
Components for showcase
Chromed
Mat chromed
Pivot hinge for 4-8mm glass
Lock n°1 without key
key
Lock with different key numbers

4
1185 mm
5
1060 mm
6
965 mm
8
835 mm
Maximum widness of the gate dependng on glass thickness
11. Pivot hinges for notched glass without timber plate
Cork wedges included



2 keys included with standard cylinder - different key numbers


Components for showcase
Chromed
Mat chromed
Hinge for 6-8mm glass
Lock n°1 without key
key
Lock with different key numbers
12. Pivot hinges for notched glass without timber plate platine - rounded edges

Cork wedges included



2 keys included

Components for showcase
Chromed
Mat chromed
Pivot hinge with rounded edge for 6-8mm glass
Lock n°1 with key
Lock with different key numbers
13. Pivot hinges for notched glass with flushed pivot : rounded edges

Cork wedges included



2 keys included with standard cylinder

3 keys included with KABA cylinder

Components for showcase
Chromed
Mat chromed
Pivot hinge with rounded edge for 6-8mm glass
Lock n°1 without key
key
Lock with different key numbers
14. Rounded edges and curved surface hinges and bolt lock knob

Cork wedges included



2 keys included



Components for showcase
Chromed
Polish anodised
Mat chromed
Anodised stainless finish
Hinge for 6-8mm glass
Lock n°1 without key
Key
Lock with different key numbers
15. Rounded edges and curved surface hinge and electronic access control

Cork wedges included







See description
Components for showcase
Chromed
Mat chromed
Anodised stainless finish
Hinge for 6-8mm glass
Knob strike
Electronic lock
Socket
Rounded hinge and curved surface Electromagnetic locks designed for access control: the bolt remains extended (door closed) by default when the power supply is absent and retracts when the locks are powered by 15VDC (600-800 mA).
Door closed, the bolt's dry contact in the strike provided reliable and secure closure detection, doing away with the need to install a remote detector.
The closure contact is managed by the electol ronics of the ALTEA access contrsystem (see 64297P or 64269J).
- For swinging or sliding doors (see 603-604), drawers of store showcases or furniture,
- To replace the magnetic suction cups and the door mechanical locks,
- For cash registers


Chromed
Polished anodised
Mat chromed
Anodised stainless finish
Hinge
Lock n°1 without key
Key
Lock with different key numbers (2 keys included)
Gas cylinder compas for glass door
Components for showcase
17. Drop front hinge and gas cylinder compas with glass frame
Polished anodised
Mat chromedt
Anodised stainless finish
Hinge
Lock n°1 without key

Key
Lock with different key numbers (2 keys included)
Gas cylinder compas for glass door
Components for showcase
18. Components for showcase
19. Glass/glass fastener - Family 637
Shelf-bracket
et
Suitable to all thickness


2 Fasteners
3 Fasteners
Chromed
Galvanized
Gilded

20. Family 505
"Square Design" Clip for partition with counterplate ADLER SELECTION
1 departure
Chromed
505 00S
Mat chromed
505 01T
1 departure - 90°
Chromed
505 02U
Mat chromed
505 03V
2 departures - 90°
Chromed
505 04W
Mat chromed
505 05X
2 departures - 180°
Chromed
505 06Y
Mat chromed
505 07Z
3 departures
Chromed
505 08A
Mat chromed
505 09B
21.Came lock cylinders

Key
Key n°
Cylinder for showcases - 2000 combinaisons dia. 18x25
Different keys
Left opening*
Left
Chromed
Alu mat
Gilded
Chromed
Alu mat
Chromed
Alu mat
1
031 11H
031 12J
031 13K
03171X
03172Y
031 09F
2
031 21T
031 22U
031 23V

031 19R
3
031 31D
031 32F
031 33G
031 29B
4
031 41Q
031 42R
031 43S
031 39N
5
031 51A
031 52B
031 53C
031 10G
031 20S
031 49Y
6
031 61M
031 62N
Right and left opening

22. Kaba security cylinders dia. 18x28
Chromed
Chromed
Cylindre KABA security with different key numbers
23. Full length custom made pivot hinge

Ref. 629 99 on request
24.Hinges for showcase MINIMA
Adjustable glass to wall hinge with 90 degree blocking point
Minima glass to wall 90 degree adjustable showcase hinge
Load capacity : 40kg/pair
Available in brushed stainless steel and polished chrome
For 8-10mm glass complete with screw cover caps

Adjsutable glass to glass 180 degree hinge with 90 degree blocking point
Minima glass to glass 180 degree adjustable showcase hinge
Load capacity : 40kg/pai
Available in brushed stainless steel and polished chrome
For 8-10mm glass complete with screw cover caps


Adjsutable glass to glass 90 degree hinge with 90 degree blocking point
Minima glass to glass 90 degree adjustable showcase hinge
Load capacity : 40kg/pai
Available in brushed stainless steel and polished chrome
For 8-10mm glass complete with screw cover caps

25.Clamp for showcase MINIMA
Adjsutable glass to glass 90 degree clamp
Minima glass to glass 90 degree glass clamp
Available in brushed stainless steel and polished chrome
For 8-10mm glass complete with screw cover caps
