| Sales unit | : | set of 4 |
| Packaging dimensions and weight | ||
| Weight | : | 35 g |
| Height | : | 28 mm |
| Length | : | 66 mm |
| Width | : | 21 mm |
| Volume | : | 39 cm3 |
)
Click the image to enlarge it or HERE

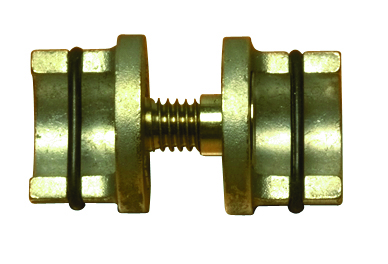

63285P
brackets dia. 20 mm, zamak, matt nickel
ADLER dia. 20 mm truncated cylinder-shaped brackets. zamak. Matt nickel finish. An O-ring, mounted on bracket, stops the shelf from slipping (this O-ring is available as spacer part with code 659 65B) Nuts and bolts not supplied. Can be mounted:
* as single bracket:
- on wood: use cone-shaped 659 70H for fastening with wood screw dia. 3.5 (549 51F);
- on glass (drill: 12 mm): use as necessary a dia. 20 round knob (659) and screw 659 32R, a clip-on rosette (518) mounted on base 518 02H (nuts and bolts 659 03K + 659 32R) or 518 04K (nuts and bolts 659 32R).
* as double bracket (drill 8 or 12 mm): by assembling 2 brackets with a screw 659 30P and a countersunk nut 659 72K.
* as single bracket:
- on wood: use cone-shaped 659 70H for fastening with wood screw dia. 3.5 (549 51F);
- on glass (drill: 12 mm): use as necessary a dia. 20 round knob (659) and screw 659 32R, a clip-on rosette (518) mounted on base 518 02H (nuts and bolts 659 03K + 659 32R) or 518 04K (nuts and bolts 659 32R).
* as double bracket (drill 8 or 12 mm): by assembling 2 brackets with a screw 659 30P and a countersunk nut 659 72K.
